Octopus 10W-30W

Octopus 10W-30W

Short Description:

Product Detail

download pdf

Product Tags

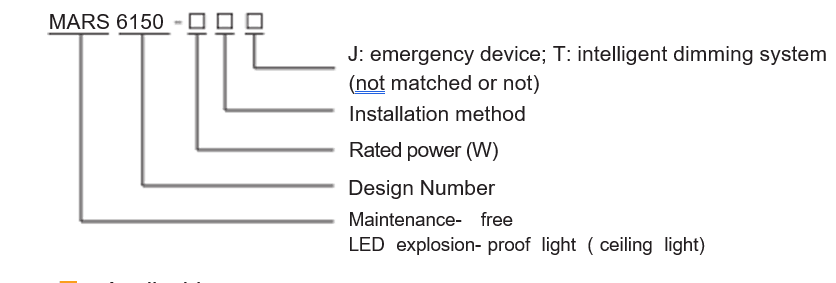

Model meaning

product model explosion-proof mark

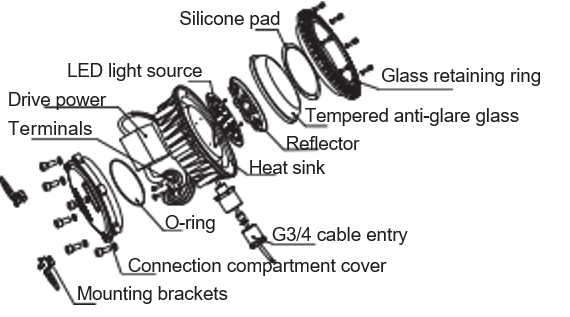

Structural Analysis

product model

Applicable scope

1. It is suitable for areas 1 and 2 in explosive environments;
2. It is suitable for areas 21 and 22 in explosive dust environment;
3. Suitable for IIA, IIB, IIC explosive gas environment;
4. Applicable to T1~T6 temperature group;
5. It is suitable for energy-saving renovation projects and places where maintenance and replacement are difficult;
6. Widely used for lighting in petroleum exploration, oil refining, chemical industry, military industry, textile, food processing and offshore oil platforms, tankers and other places.

Executive standard

GB3836.1、GB3836.2、GB12476.1、GB12476.5、IEC60079-0、IEC60079-1、IEC61241-0、IEC61241-1、GB 19510.1、GB/T24827、GB17945、GB7000.1、GB7000.10、GB17743、GB17625.1。

Product Features

1. The radiator design is made of special aluminum alloy die-casting, and the surface is high-voltage electrostatic spray;
2. Stainless steel exposed fasteners with high anti-corrosion performance;
3. The flame-proof joint surface of the mouth is pure flame-proof structure, and the explosion-proof performance is more reliable;

no glare;
4. Professionally designed light distribution system, high light utilization rate, reasonable light distribution, uniform illumination,
5. High-strength material transparent anti-glare glass cover, strong impact resistance and thermal shock resistance, high light
6. Constant current power supply with wide voltage input and constant current output, with protection functions such as shunt,
anti-surge, over-current, open circuit, open circuit, high temperature, and anti-electromagnetic interference;
7. Microwave induction dimming system, energy saving and environmental protection;
8.Power factor cosφ≥0.95;
9. It can be equipped with a combined emergency device according to the use requirements. When the power supply is cut off, it
can automatically switch to the emergency lighting state;
10. Steel pipe or cable wiring.


Emergency Parameters/Intelligent Dimming

Emergency start time (S) Charging time (h) Emergency power (W) Emergency lighting time (min)
≤0.3 24 5~10 optional ≥60min, ≥90min optional

Featured display

W e l l - k no w n   b r a n d   c h i p s ,   re a s o n a b le arrangement,  unidirectional  light  emission, uniform  and  soft  light,  light  efficiency ≥130lm/W, high color rendering Ra>80, long service  life,  green  environmental  protection, color temperature 3000K~6500K.


Microwave induction dimming system: a When the human body is within the range of  the  lamp  (5~10  meters  adjustable),  the lamp runs at full power; B When the human body  leaves  (0-30S  adjustable),  the  lamp  is reduced  to  20%  power  operation,  energy saving and environmental protection.

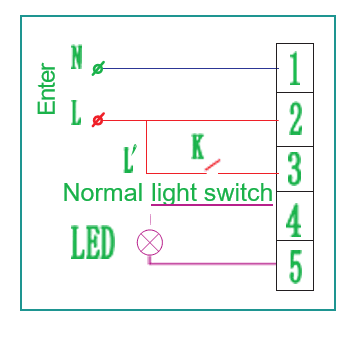

Emergency power wiring diagram

and indicate the explosion-proof mark

Technical parameter

Model specification Explosion-proof mark Light source Type Power (W) Luminous flux (Lm) Color        temperature (k) Weight (kg)
 MARS 6150- □ Ex d IIC T6 Gb;Ex tD A21 IP66 T80°C  LED  I 10 1200  3000~6500  1.8
20 2400
30 3600


Rated voltage/ frequency Inlet thread Cable outer diameter Protection class Corrosion class
220V/50Hz G3/4  、   NPT3/4 、    M25X1.5 Φ9~Φ14mm IP66 WF2

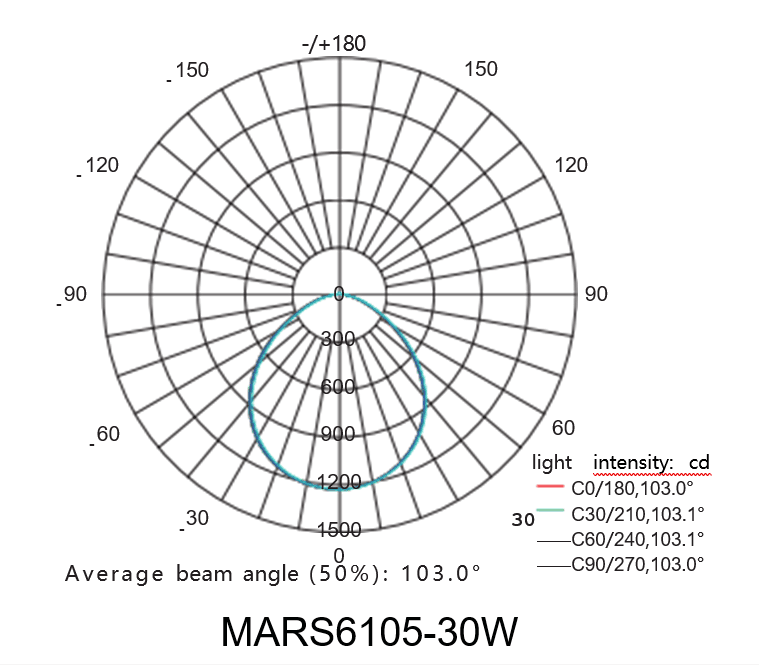

Light distribution curve

product model specifications andhe explosion-proof mark

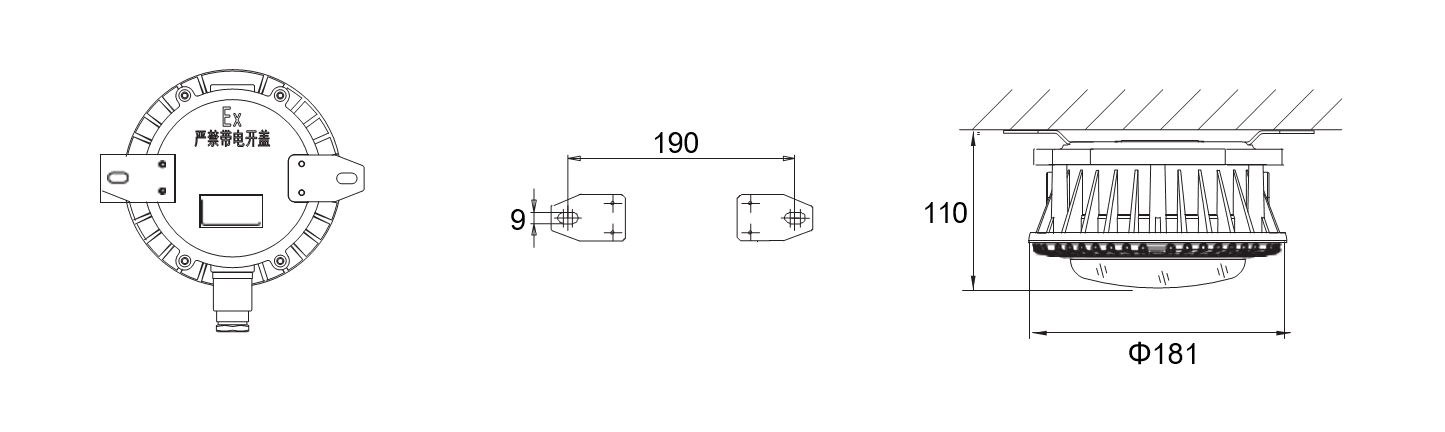

Dimensions and Mounting

Appearance and installation example

product model specifications and indicate mark

Ordering notice

1. Select one by one according to the product model specifications and indicate the explosion-proof mark.
For example: if 30W explosion-proof lamps are required, the product model specification is:
MARS 6150-30W W explosion-proof mark: Ex d ⅡCT6 Gb
