Mini KingKong II-10-150W

Mini KingKong II-10-150W

Short Description:


Product Detail

download pdf

Product Tags

Features

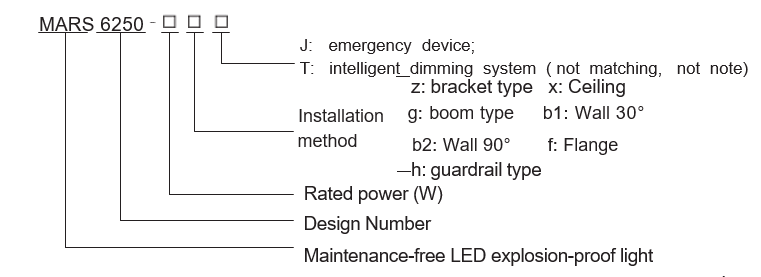

Model meaning

according to the product model specifications

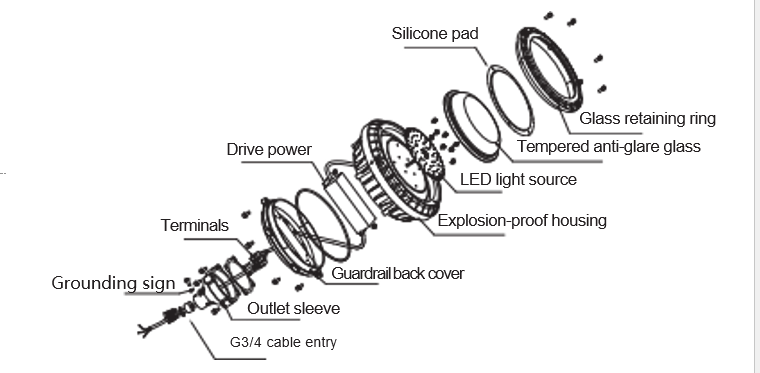

Structural Analysis

according to the

Applicable scope

1. It is suitable for areas 1 and 2 in explosive environments;
2. It is suitable for areas 21 and 22 in explosive dust environment;
3. Suitable for IIA, IIB, IIC explosive gas environment;
4. Applicable to T1~T6 temperature group;
5. It is suitable for energy-saving renovation projects and places where maintenance and replacement are difficult;
6. Widely used for lighting in petroleum exploration, oil refining, chemical industry, military industry, textile, food processing and offshore oil platforms, tankers and other places.

Executive standard

GB3836.1、GB3836.2、GB12476.1、GB12476.5、IEC60079-0、IEC60079-1、IEC61241-0、IEC61241-1、GB 19510.1、GB/T24827、GB17945、GB7000.1、GB7000.10、GB17743、GB17625.1。

Product Features

1. The radiator design is made of special aluminum alloy die-casting, and the surface is high-voltage electrostatic spray;
2. Stainless steel exposed fasteners with high anti-corrosion performance;
3. The flame-proof joint surface of the mouth is pure flame-proof structure, and the explosion-proof performance is more reliable;
no glare;
5. Constant current power supply with wide voltage input and constant current output, with protection functions such as shunt,
4. Professionally designed light distribution system, high light utilization rate, reasonable light distribution, uniform illumination,
6. Microwave induction dimming system, energy saving and environmental protection;
7. Power factor cosφ≥0.95;
8. It can be equipped with a combined emergency device according to the use requirements . When the power supply is cut off, it
can automatically switch to the emergency lighting state;
9. Steel pipe or cable wiring.

Specification

Emergency Parameters/Intelligent Dimming

Emergency start time (S) Charging time (h) Emergency power (W) Emergency lighting time (min)
≤0.3 24 10~50 optional ≥60min、≥90min optional

Featured display

rele W e l l - k no w n   b r a n d   c h i p s ,   re a s o n a b le arrangement,  unidirectional  light  emission, uniform  and  soft  light,  light  efficiency ≥130lm/W, high color rendering Ra>80, long service  life,  green  environmental  protection, color temperature 3000K~6500K.

induction

Microwave induction dimming system: a When the human body is within the range of  the  lamp  (5~10  meters  adjustable),  the lamp runs at full power; B When the human body  leaves  (0-30S  adjustable),  the  lamp  is reduced  to  20%  power  operation,  energy saving and environmental protection.

energytionprojectsandplaces

High-strength material, transparent anti-glare glass  cover,  strong  impact  resistance  and th e rm a l   shock   res is tance ,   high   light transmittance

channel

T he  natural  ventilation  convection  heat dissipation  technology  uses  air  flow  to dissipate to the surface of the lamp heat sink through the heat dissipation channel and heat flow channel, effectively dissipating the heat of the LED light source;





Technical parameter

Model specification Explosion-

proof mark

Light source Type Power (W) Luminous flux (Lm) Color        temperature (k) Weight (kg)






MARS6250- □





Ex d IIC T6 Gb;

Ex tD A21 IP66 T80°C







LED

I 10~30 1200~3600





3000~6500

2.4
II 40~60 4800~7200 3.5
III 70~100 8400~12000 5.4
IV 120~150 14400~18000 6





Rated voltage/ frequency Inlet thread Cable outer diameter Protection class Corrosion class
220V/50Hz G3/4  、   NPT3/4 、    M25X1.5 Φ9~Φ14mm IP66 WF2

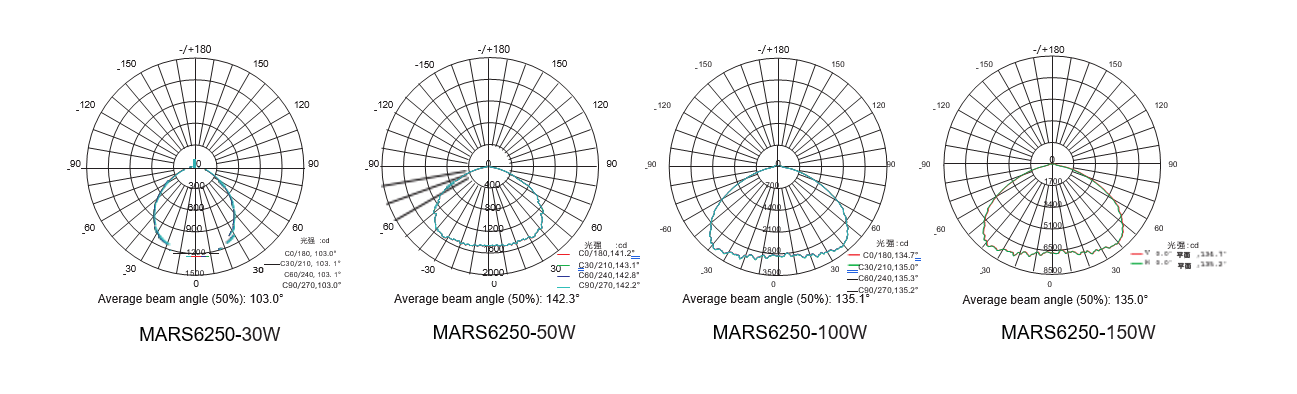

Light distribution curve

accordingspecifications

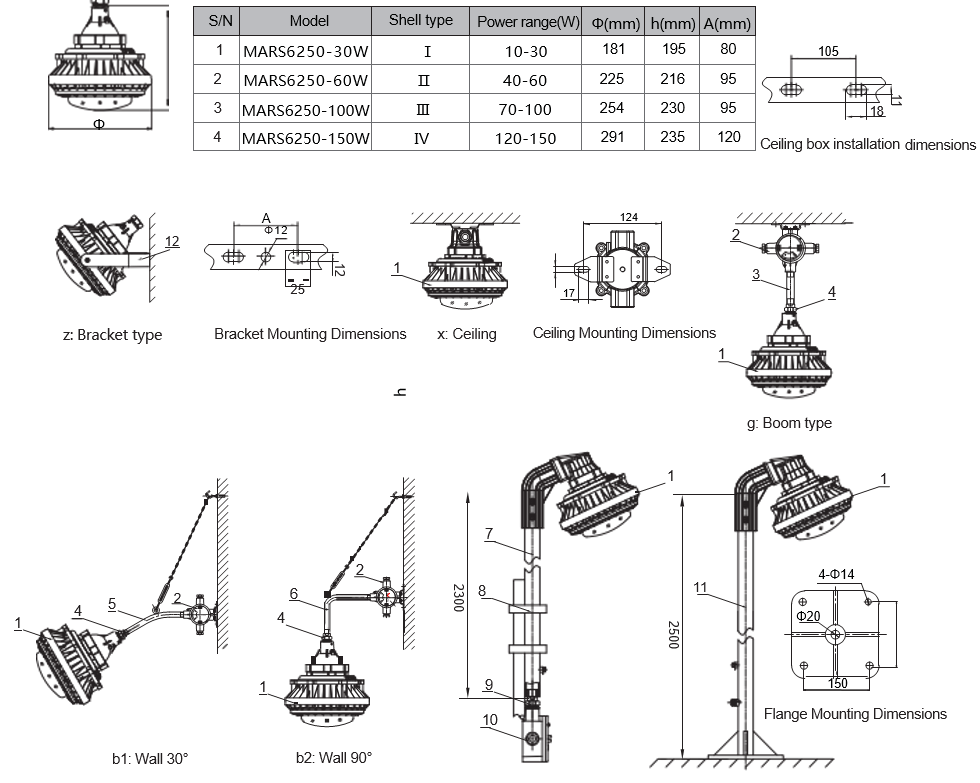

Dimensions and Mounting

Appearance and installation example

according to specifications

Accessories selection table

S/N Name Remark S/N Name Remark
1 Maintenance-free LED explosion-proof light / 7 11/4 guardrail light pole + aluminum alloy elbow User selection
2 Explosion-proof pendant light box AH-dG3/4” User selection 8 U-shaped pipe clamp + pressure plate + nut + gasket User selection
3 300mmG 3/4” straight rod Length optional User optional 9 Explosion-proof pipe joint joint BGJ-G 3/4” two outer User selection
4 Explosion-proof union BHJ-G 3/4"

one inside and one outside

User selection 10 Explosion-proof Junction Box AH-G3/4” C Tee Flat Cover User selection
5 300mmG3/4”Bend bar with tie bar 30° User selection 11 11/4 flange light pole + aluminum alloy elbow User selection
6 300mmG3/4”Bend bar with tie bar 90° 12 Mounting brackets User selection

Ordering notice

1. Select one by one according to the product model specifications and indicate the explosion-proof mark.
For example: if 30W explosion-proof lamps are required, the product model specification is:
MARS 6150-30W W explosion-proof mark: Ex d ⅡCT6 Gb
