MINI Wukong Explosion-proof light 20-40W

MINI Wukong Explosion-proof light 20-40W

Short Description:

1 . Imported chips are preferred , with excellent luminous flux maintenance rate and high luminous efficiency.
2 . Adopt surface mount technology (SMT) to greatly improve thermal conductivity.
3 . Using the latest nanotechnology, it can increase the illuminance by 16 .67% compared to the coated Engineering plastics.

Product Detail

download pdf

Product Tags


Features of Optical System
1. Imported chips are preferred, with excellent luminous flux maintenance rate and high luminous efficiency.
2. Using surface mount technology (SMT), the thermal conductivity is greatly improved.
3. Using the latest nanotechnology, compared with coated engineering plastics, the illumination can be increased by 16.67%.

Drive System Features

1. Adopt constant current drive, with short circuit and overvoltage protection functions.
2. It has an integrated emergency function for easy and simple installation.
The emergency power reduction function can be activated to make the emergency response more energy-saving and improve the fire safety function in an unattended environment.
3. Good compatibility, will not interfere with other electrical appliances, and can make the voltage tolerance reach 25% fluctuation.
4. The driving device adopts the glue sealing process to ensure the heat dissipation and corrosion resistance of each component.

Structural characteristics of the whole lamp

1. Standard heat dissipation structure, the wiring cavity, power supply cavity and light source cavity are all independently dissipated and do not affect each other.
2. The exposed fasteners and accessories are made of 304 stainless steel, which has stronger corrosion resistance.
3. An integrated emergency is adopted, no additional distribution box is required, which is convenient for installation and maintenance.
4.The installation method can choose ceiling type, hanging rod type and bracket type.


Scope of application
◆Suitable for Zone 1 and Zone 2 in explosive gas atmospheres.
◆Suitable for IIA, IIB, IIC class explosive gas environment.
◆Suitable for environments with temperature groups T1~T6.
◆Suitable for energy-saving renovation projects and places where maintenance and replacement are difficult.
◆It is widely used in large-area flood/projection lighting places in petroleum, petrochemical and chemical enterprises, as well as various drilling operations and field lighting as large-area flood/projection lighting.
It is used for the ceiling of gas stations, flood lighting in various factories, and road lighting in factories.

Normal working conditions
◆The altitude of the installation site shall not exceed 2000 meters.
◆The ambient temperature is -40℃~+40℃, and the average temperature within 24 hours does not exceed +35℃.
◆The relative humidity of the surrounding air does not exceed 95% (+25°C).
◆A place without severe vibration, shock or shaking.
◆Suitable for Zone 1, Zone 2, 11A, 11B, Class IIC and Group T1~T6 explosive gas environment or combustible dust place.

Executive standard Gb3836 (equivalent to IEC60079 , EN series standards)
Explosion- proof mark Exd llCT4/6 Gb/Ex tDA21 IP66 T135℃
Rated voltage 85-265VAC
Frequency Range 50Hz
Rated power 20W-40W
LED luminous flux 2600-6500lm
Power factor ≥0 .95
Power Efficiency ≥0 .88
Color rendering index ≥80
Inrush current Cold start/Cold; 30A(max) 230VAC
Safety UL8750 ,TUV EN61347- 1 , EN61347-2- 13
Battery compatibility standard EN61000-3-2 ,TUV EN61347- 1 , EN61347-2- 13
Protection level IP 66
Anti-corrosion grade Wf2
Inlet thread G3/4"
Cable specifications Φ7-Φ12mm

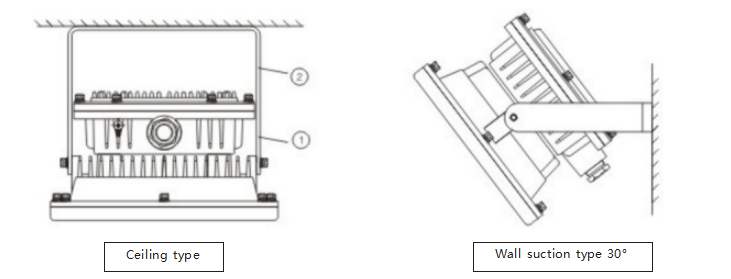

Installation method X: ceiling type/ b: wall suction 30°/b2:wall suction 90°
Working environment Temperature; -40-45℃ Humidity: 10%-90%
Lifespan ≥50000H
Product weight 2 .5kg

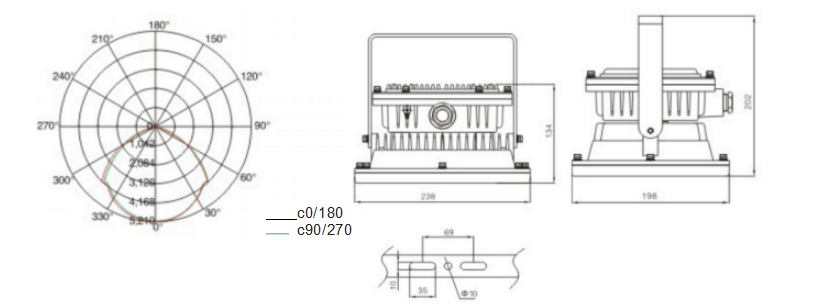

Light distribution curve and size chart




1.Must have earth line in the right application!
2.After Earthing ,must use insulation tape,insure the separating and water-proof.
3.Fastening the sorew,in case it gets loose!
4.input voltage not exceeding AC100~277V/DC24V!

After sale service

Response in 2 hours if you have any problem when you receive the goods .
Below condition is free of repairing .
Damage due to faulty application and operation .
Damage due to transportation .
Damage due to self repairing .
Damage due to natural disaster.
