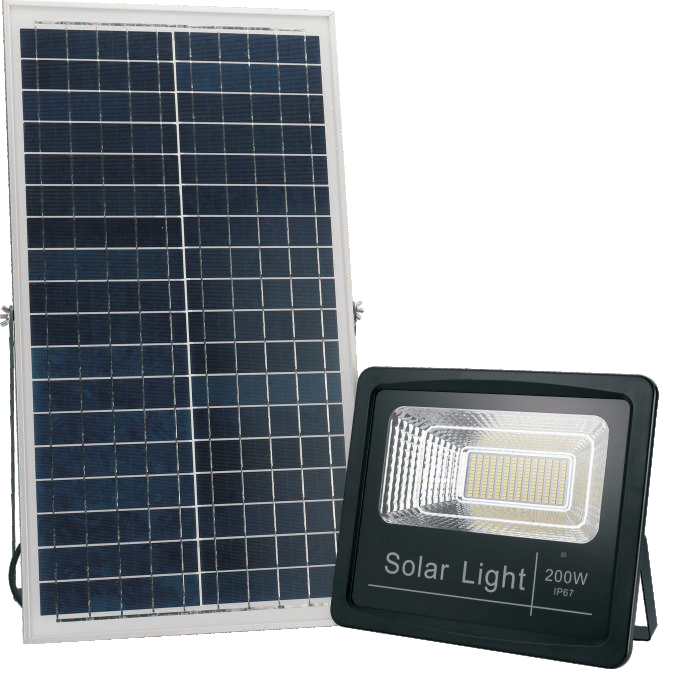

Solar flood light series Treasure bowl

Solar flood light series Treasure bowl

Short Description:


Product Detail

download pdf

Product Tags

Features

1
2
3

Specifications

Product parameters

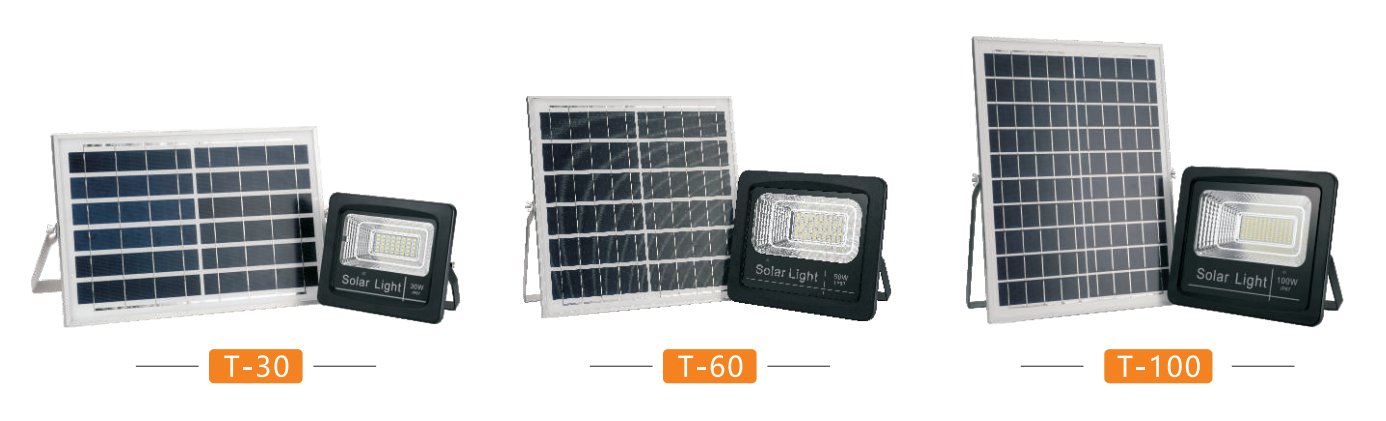

Model NO:

MARS-Z73 T-30

MARS-Z74 T-60

MARS-Z75 T-100

MARS-Z76-T-200

Photovoltaic panels

A-grade polycrystalline silicon solar panel 5V10W

A-grade polycrystalline silicon solar panel 5V15W

A-grade polycrystalline silicon solar panel 5V20W

A-grade polycrystalline silicon solar panel 5V30W

Light source

1C39B5730 bright lamp beads

1C79B5730 bright lamp beads

1C119B5730 brigh lamp beads

1C181B5730 brigh lamp beads

Discharge time

12-24hours

12-24hours

12-24hours

12-24hours

CCT

6000K-6500K

6000K-6500K

6000K-6500K

6000K-6500K

Battery capacity

32650 lithium iron phosphate battery 3.2V5000mah

32650 lithium iron phosphate battery 3.2V10000ma

32650 lithium iron phosphate battery 3.2V20000mah

32650 lithium iron phosphate battery 3.2V30000mah

Lamp head size

190*168* 58MM

265*220* 65MM

300*250* 82MM

340*280* 90MM

Carton size

34*32* 22CM

46.5*39* 29CM

47*24* 33CM

52.5*30* 36.5CM

Qty

10/box

10/box

5/box

5/box

Photovoltaic panel outer box size

26.5*25* 37CM

39.5*26* 38CM

51*17* 39.5CM

68*18* 38CM

Lampb body material

ABS anti-UV engineering plastic + tempered glass

ABS anti-UV engineering plastic + tempered glass

ABS anti-UV engineering plastic + tempered glass

ABS anti-UV engineering plastic + tempered glass

Operating mode

Product model

MARS-Z73 T-30

MARS-Z74 T-60

MARS-Z75 T-100

MARS-Z76-T-200

Charge current

1.6A

3A

4A

6A

Charge every day

5.6AH

10.5AH

14AH

21AH

Daily electricity

3.6AH

5AH

10.9AH

15AH

Discharge curren

0.7A

1.5A

2.5A

3.5A

Actual power

3W

6W

9W

12W

Operating mode

Charging indication full radar + timing control radar

Charging indication full radar + timing control radar

Charging indication full radar + timing control radar

Charging indication full radar + timing control radar

4
