Hot Sale for 500w Flood Light Bulb - WuKong 30-350W – Mars Detail:

Features

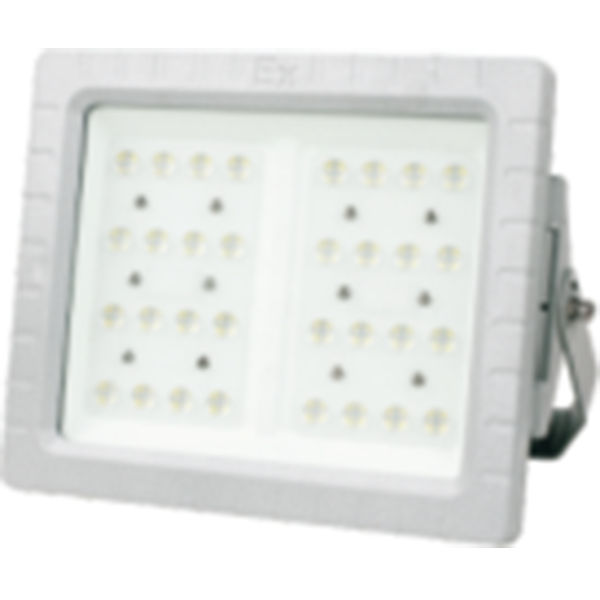

WuKong1

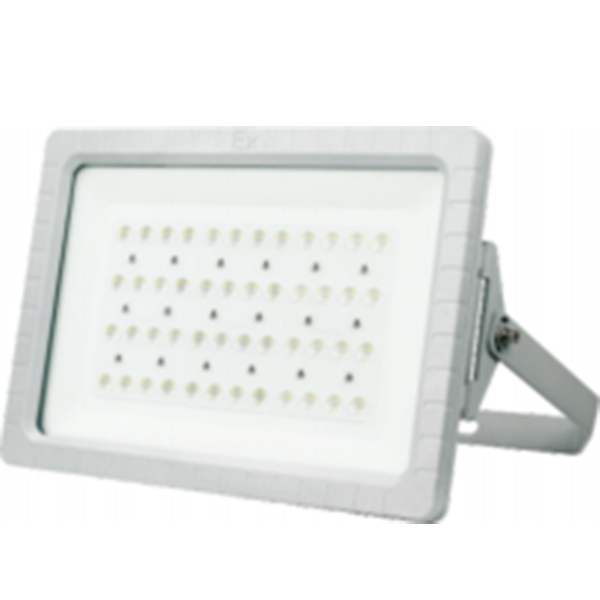

WuKong2

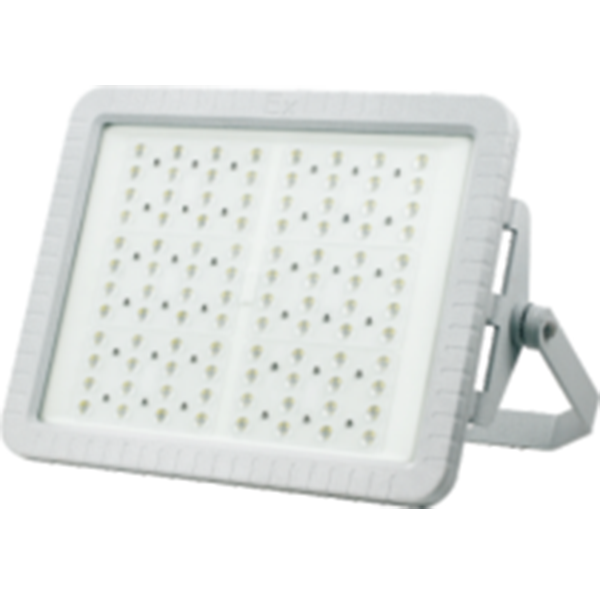

WuKong3
WuKong4

Applicable scope

1. It is suitable for areas 1 and 2 in explosive environments;

2. It is suitable for areas 21 and 22 in explosive dust environment;

3. Suitable for IIA, IIB, IIC explosive gas environment;

4. Applicable to T1~T6 temperature group;

5. It is suitable for energy-saving renovation projects and places where maintenance and replacement are difficult;

6. Widely used for lighting in petroleum exploration, oil refining, chemical industry, military industry, textile, food processing and offshore oil platforms, tankers and other places.

Executive standard

GB3836.1、GB3836.2、GB3836.3、GB12476.1、GB12476.5、IEC60079-0、IEC60079-1、IEC60079-7、IEC61241-0、IEC61241-1、 GB 19510GB 19510.1、GB/T24827、GB17945、GB7000.1、GB7000.10GB17743、GB17625.1。

Product Features

1. The radiator design is made of special aluminum alloy die-casting, and the surface is high-voltage electrostatic spray;

2. Stainless steel exposed fasteners with high anti-corrosion performance;

3. Separate structure of light source cavity and power supply cavity;

4. Professionally designed light distribution system, high light utilization rate, reasonable light distribution, uniform illumination, no glare;

5. The junction box is a labyrinth structure, equipped with a silicone rubber sealing strip, which is firmly pasted and has

6. High-strength material tempered glass, strong impact resistance and thermal shock resistance, high light transmittance;

7. Constant current power supply with wide voltage input and constant current output, with protection functions such as shunt, anti-surge, over-current, open circuit, open circuit, high temperature, and anti-electromagnetic interference;

8. Power factor cosφ≥0.95;

9. It can be equipped with a combined emergency device according to the use requirements. When the power supply is cut off, it can automatically switch to the emergency lighting state;

10. Cable wiring.

Specification

Emergency parameters

Emergency start time (S) Charging time (h) Emergency power (within 100W) Emergency power (within 200W) Emergency lighting time (min)
≤0.3 24 ≤20W 20W~50W optional ≥60min, ≥90min optional

Featured display

WuKong5

W e l l – k no w n   b r a n d   c h i p s ,   re a s o n a b le arrangement,  unidirectional  light  emission, uniform  and  soft  light,  light  efficiency ≥130lm/W, high color rendering Ra>80, long service  life,  green  environmental  protection, color temperature 3000K~6500K.

WuKong6

Gear  adjustment  mechanism,  the  irradiation

angle can be adjusted from 0 to 270°C.

WuKong7

T he  fin  design  of  the  heat  dissipation structure  increases  the  surface  area  of  the heat  dissipation,  and  the  air  convection groove  is  set  up  to  use  the  air  flow  to effectively  dissipate  the  heat  of  the  light source  cavity  and  ensure  the  long – life operation of the lamp.

WuKong8

The  integrated  innovative  design  of  optical parts and anti-glare parts adopts multi-point light  distribution,  uniform  illumination without  glare;  optional  multi-angle,  suitable for places with different installation heights.

Technical Parameters

Model specification Explosion-proof mark Light source Type Power (W) Luminous flux (Lm) Color        temperature (k) Weight (kg)
  MARS8360- □  Ex d e mb IIC T6 Gb; Ex tD A21IP66 T80°C   LED I 30~ 100 3600~ 12000   3000~6500 7
II 120~200 14400~24000 11
III 180~350 21600~42000 17

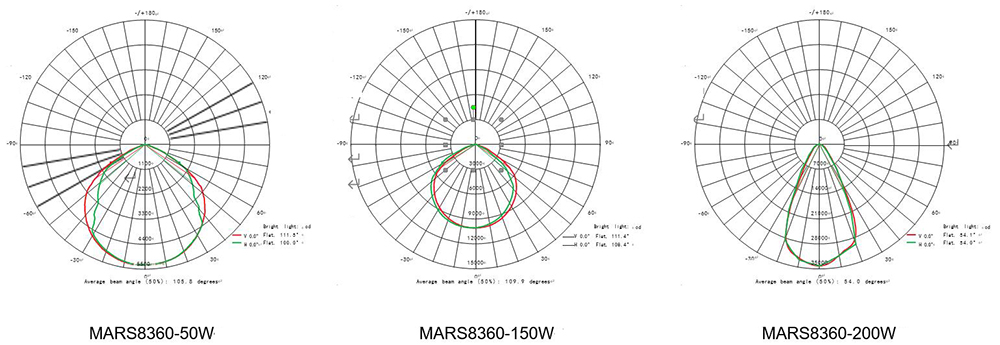

Light distribution curve

WuKong9

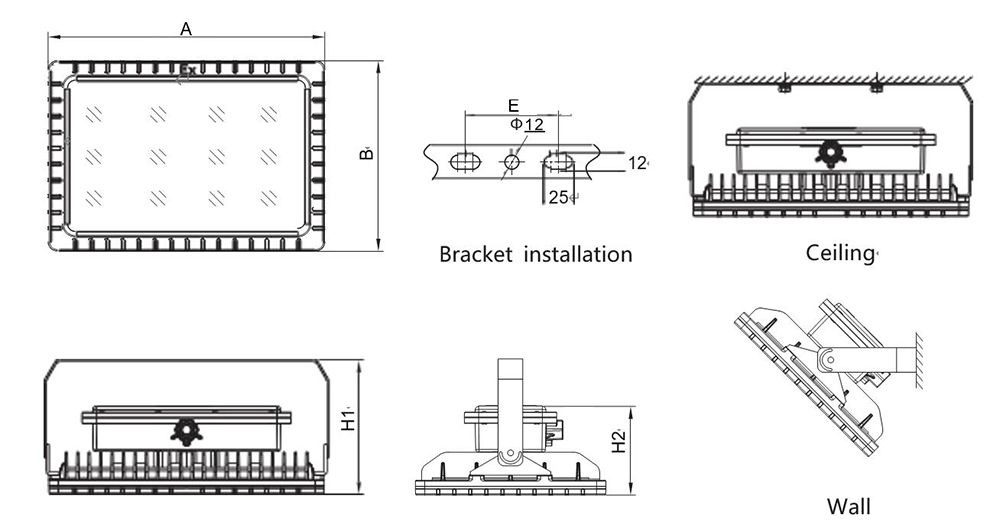

Dimensions and Mounting

WuKong10

TYPE A(mm) B(mm) H1(mm) H2(mm) E(mm)
I 308 255 240 145 105
II 448 308 220 145 150
III 480 380 330 120 200

Accessories selection table

Number Name Remark
1 LED explosion-proof floodlight (flood light) /
2 Explosion Proof Junction Box G3/4”Tee User selection
3 Explosion-proof flexible pipe G3/4” NGD-20X500 one inside and one outside Length can be customized

Ordering notice

1. Select one by one according to the product model specifications and indicate the explosion-proof mark,

For example: if 50W explosion-proof lamps are required, wall-mounted, the product model

specification is: MARS8360-50W explosion-proof mark: Ex de mb IIC T6 Gb

2. For the selection of installation accessories, please refer to the “Accessory Selection Table” to purchase.
